MauiSails sail rigging tips


By Artur Szpunar

Downhaul (DH) measurement


Downhaul (DH) specification measured from bottom of the mast to the bottom of tack pulley.

This photo shows DH=5cm for a Mutant 4.6. Base extension must be set at next higher setting above the DH specification. For example of DH=5cm, base extension would be set at 6 or 7cm.

Boom measurement


Boom specification measured from clew to front of the mast at center of cutout.

This example shows Mutant 4.6 measuring 164cm. Sail should have between 1-2cm of positive outhaul after being fully downhauled.

Visual downhaul and outhaul check


Once downhauled and outhauled to specification, the tip of the batten above the boom should sit right at the back edge of the mast.

When rigged correctly, the sleeve should be taut, midway between the top 2 battens.

Overview




Tuning and perfecting the tension, profile, and twist relationships

After the major step and significant outline and shaping changes of the TR-7, we have dedicated this season’s development to tuning and perfecting the tension, profile, and twist relationships in order to present a finely tuned and polished TR-8 race sail.

Performance wise, we achieved the goal to increase wind range and top speed by a combination of better balance and stability, together with improved control in gusts. The general design theme throughout the line required adding some extra locked in shape to the lower sail profile while balancing this with a slightly flatter upper profile. This produced a more progressive twist and improved release up top. Shaping adjustments were carefully matched to each size to ensure that the correct overall rig tension was achieved and verified with our load cell technology. Larger slalom and formula sizes received relatively more shape down low and a bit more overall tension in order to better support and stabilize their profiles and to aid in coasting through lulls.

While the entire TR-8 range also benefited from some extra shape and stability down low, great care was taken to ensure that they maintain a soft feel and light handling even when being pushed to the max by the biggest gusts. Stiffer reinforcements in the upper mast sleeve reduce stretch and have allowed us to flatten the upper sail body profile shaping and helped us to create an improved twist profile that progresses perfectly all the way up the leech. The result was a leech that has the optimum balance between release for light handling in gusts, without yielding the tension necessary to drive the board and provide excellent acceleration. The whole rig powers you while feeling perfectly balanced, efficient, and light in the wind.

Superior handling and non-issue cam rotation ensure that not only will the sails have brilliant speed in a straight line but will also make it around and away from the buoys as effectively as possible. We are confident that anyone who chooses the TR-8 race sails will have the best, fine-tuned engine with the ability to power them to the front of any pack.

Check out light weight version of TR-8 made out if Technora TR-8XT

Available sail sizes » 4.7, 5.1, 5.5, 5.9, 6.3, 6.6, 7.0, 7.6, 8.4, 9.2, 10.0, 11.0, 12.0

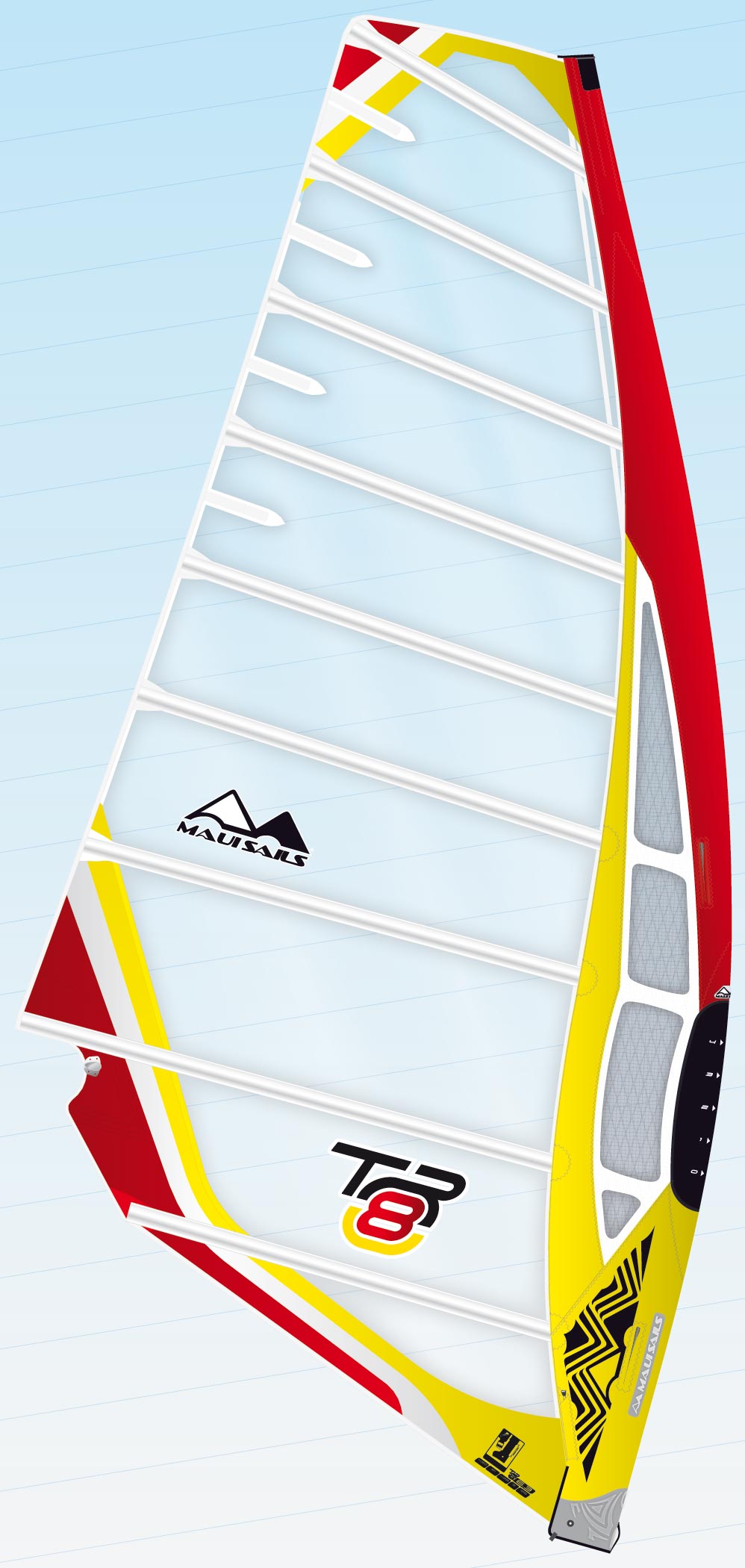

Colorways

2012 TR-8 in action

2012 TR-8  2012 TR-8  2012 TR-8  2012 TR-8  2012 TR-8  2012 TR-8  2012 TR-8

MauiSails 2012 sails range »Legend | Ghost XT | Global | Loco | Switch | Aloha | Pursuit | Blaze | TitanGS | TR-8 | TR-8 XT | Rebel | Inspire
