MauiSails sail rigging tips


By Artur Szpunar

Downhaul (DH) measurement


Downhaul (DH) specification measured from bottom of the mast to the bottom of tack pulley.

This photo shows DH=5cm for a Mutant 4.6. Base extension must be set at next higher setting above the DH specification. For example of DH=5cm, base extension would be set at 6 or 7cm.

Boom measurement


Boom specification measured from clew to front of the mast at center of cutout.

This example shows Mutant 4.6 measuring 164cm. Sail should have between 1-2cm of positive outhaul after being fully downhauled.

Visual downhaul and outhaul check


Once downhauled and outhauled to specification, the tip of the batten above the boom should sit right at the back edge of the mast.

When rigged correctly, the sleeve should be taut, midway between the top 2 battens.

Overview




Masterful workhorse

The Legend remains our flagship sides-shore wave sail. After lowering the aspect ratio last year, a full season of daily testing focused on size-by-size fine tuning of the Legend designs. The result is a perfectly balanced, meticulously refined machine. The moderately forward oriented draft eases transitions perfectly from driving bottom turns to correctly neutral when coming off the top. The excellent combination of balanced power and incredible high end control optimizes the smooth, light handling even in the most gnarly, gusty, offshore conditions. The Legend’s great control expands its popularity from side shore wave conditions to super high wind areas like the Gorge or Pozo, where overpowered handling is key.

New for 2013, is the extensive use of exclusive MauiSails™ light weight gradient X-Ply™ in the upper sail body. This custom material has excellent strength to weight properties and produces an original gradient effect that ties in with new bright colors to make the Legend stand out on the water like never before. This material is the result of several years of development and long term testing of our special Small Yarn Light Film laminate type. Two custom weights of Visual X-Ply in the window area match their loads for perfect tension.

The bits and pieces:

  • Custom lightweight Gradient x-ply (SmallYarn/Light Film) laminate      SYLF … an imaginary being inhabiting the air
  • Low profile polycarbonate batten tensioners with stainless steel screws
  • INOX clew rings
  • Finest U.S. manufactured laminates from Dimension Sailcloth
  • Extra-wide Mark cloth window perimeter reinforcement
  • Durable but lightweight padded tack protection
  • Brass wheel triple pulley for easy rigging
  • Unidirectional Kevlar™ reinforcement structure on all edges, batten pocket seams for non-stretch stability
  • Square cut boom opening to maximize height range
  • Molded PVC seam and foot protection

Available sail sizes » 2.9, 3.3, 3.5, 3.7, 4.0, 4.2, 4.5, 4.7, 5.0, 5.3, 5.7, 6.1

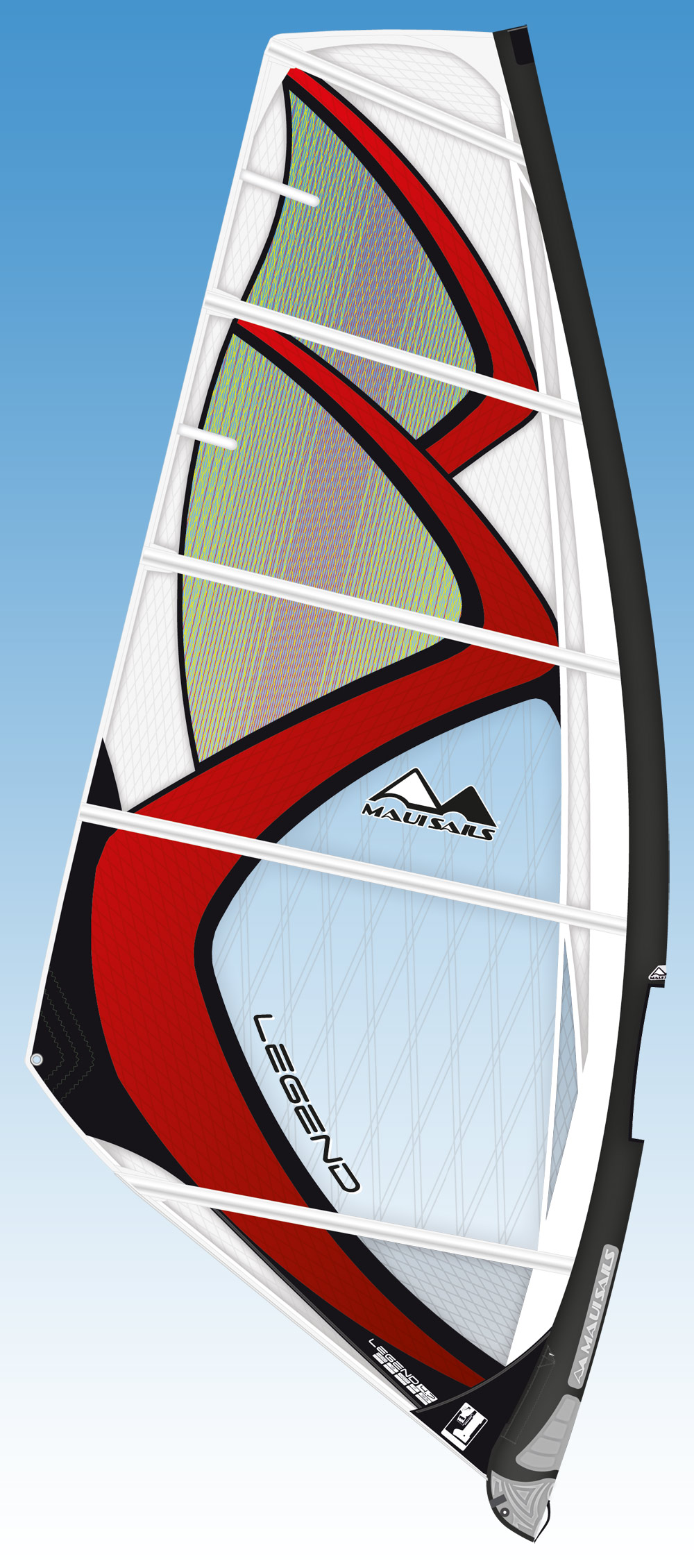

Colorways

2013 Legend in action

2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend  2013 Legend
