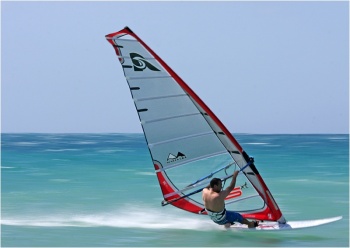

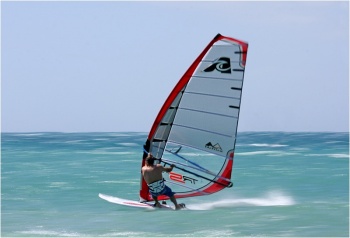

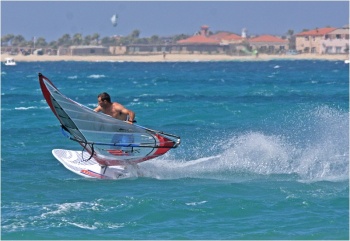

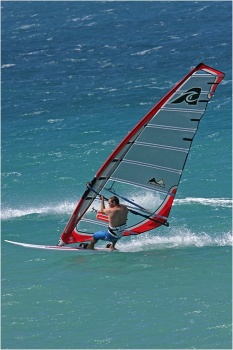

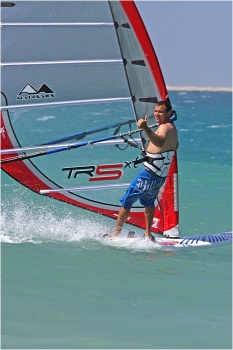

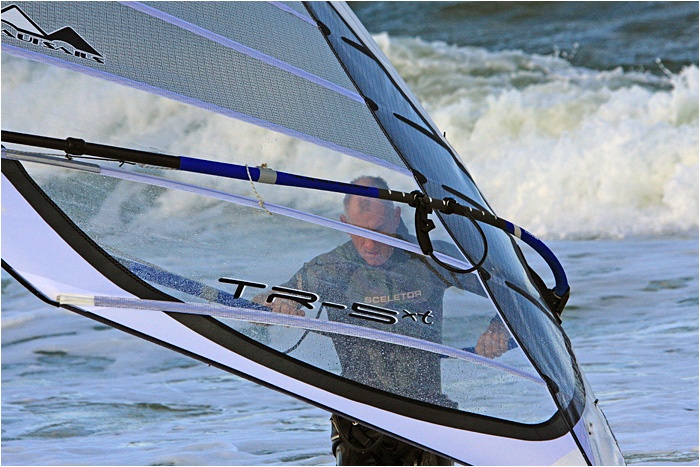

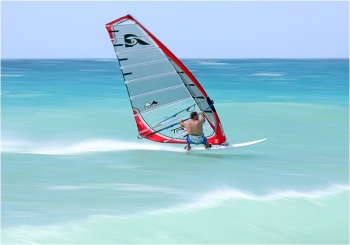

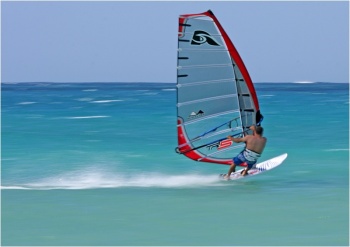

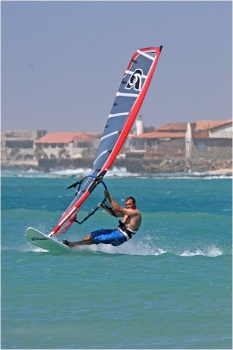

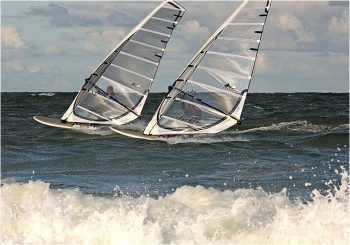

2009 TR-5xt

Light weight version of TR-5

At the first 2008 PWA event in Korea we introduced a special order TR-4 XT model made with Dimension™ Technora™ scrim laminate that is about half the weight of current film material, but with better stability.

For 2009 we have used batten pockets made with structural Technora to lighten the sail even more. The  reduced weight aloft combined with the supple character of this specialized XPly™ makes a sail that is so easy to use, especially with the easy handling and comfortable character of the TR-5 design.  These special order TR-5 XT's will be available in sizes from 5.9 - 12.0 m2 in 2009; but will require advanced purchase agreements.

We have been building on evolving an unusual shaping method with refinement and performance consistency while moving size to size has been a strong focus. Making all the sails have a similar comfortable feel through a wide range of conditions is a benefit of developing even tension with smooth transition from fuller lower sections to flatter more twisted upper sections. This results in excellent low end power and amazing upwind speed.

By subtly shifting load in the batten tension attachments, we smoothed the trailing edge and guaranteed proper tension on the critical leech edge. New EVA tack fairing covers add nice finish and make the lower sleeve end smoothly.

Probably the most significant addition to the 2008/9 development cycle has been our Omega™ Load Cell device. Customized especially for use with windsurfing sails, this highly accurate electronic sensor helps us to see the actual rigging loads at work. Through using the OLC in daily rigging sessions, we can easily pinpoint an ideal tension range easily. Within a narrow band of adjustment ( about 1cm) there can be a wide band of tension measured. For example, a TR-5 7.6 tensioned at about 210 kg  (which is about 40kg more than we find ideal), is only 1cm more than when the sail is tensioned at 125 kg, far too little. This is what prompted us to use a more refined description of the downhaul settings, now to be measured rather than assuming base dimensions are correct.

That the tension is changing so remarkably after relatively small changes in measured tuning has shown us that the adjustments a highly competitive sailor makes must take this into account. Accuracy and repeatability become very important for determining the ideal settings that work for your board, fin, and body type. Changes of only 3-5mm can result in differences in feel or performance attributes that would be unrecognizable in static, and only discovered in one-on-one tuning or race conditions. This is why it is so important to be extra careful with measuring and recording successful settings. This is why you will see top level competitors doing this and often keeping notes about observations.

This type of easily adjusted, lower tension sail shape has fine control that effects twist and leech tension more evenly and predictability. The adjustable outhaul serves to firm the leech smoothly and is gauged to progressively tighten the edge without making the lower sections go flat.

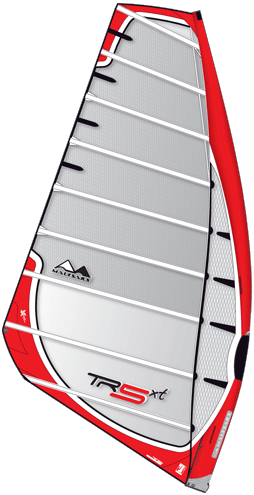

colours

Specification

Size
Mast
IMCS
Luff
Boom
Head ext.
Downhaul
DH
Head
Battens
Cambers
Cams
Weight
5.9
430
21
436
188
-
6
fixed
9
4
5.10
6.3
430
21
446
199
-
16
fixed
9
4
5.40
6.6
460
25
463
206
-
3
fixed
9
4
5.60
7.0
460
25
471
215
-
11
fixed
9
4
5.70
7.6
460
25
481
228
-
21
fixed
9
4
6.00
8.4
490
29
503
238
-
13
fixed
9
4
6.40
9.2
520
32
524
250
-
4
fixed
9
4
6.70
10.0
520
32
533
266
-
13
fixed
9
4
7.00
11.0
550
36
561
279
-
11
fixed
9
5
7.50
12.0
550
36
581
295
-
31
fixed
9
5
8.00
