MauiSails sail rigging tips


By Artur Szpunar

Downhaul (DH) measurement


Downhaul (DH) specification measured from bottom of the mast to the bottom of tack pulley.

This photo shows DH=5cm for a Mutant 4.6. Base extension must be set at next higher setting above the DH specification. For example of DH=5cm, base extension would be set at 6 or 7cm.

Boom measurement


Boom specification measured from clew to front of the mast at center of cutout.

This example shows Mutant 4.6 measuring 164cm. Sail should have between 1-2cm of positive outhaul after being fully downhauled.

Visual downhaul and outhaul check


Once downhauled and outhauled to specification, the tip of the batten above the boom should sit right at the back edge of the mast.

When rigged correctly, the sleeve should be taut, midway between the top 2 battens.

Overview




Barely there

Even though this whisper soft, wonderfully efficient, pure wave sail feels barely there, it has the substance to create more demand as the word spreads about how well it performs. The original goal was to make super light larger sizes that would carry well in big surf and light wind. As more and more people tried and liked them, they also asked for smaller sizes, simply because of the feel and the durability of the 100% Technora™ laminate (ODL04).

Now in its third year, the revolutionary, ultra light Ghost XT benefits from a new shorter luff and higher foot outline similar to the Legend. This results in the most unbelievably light handling and agile wave sail available. Not only is the Ghost XT light but the Technora™  fibres used in the Ghost laminate X-Ply™ are three times stronger than polyester yarns used in other “light weight” materials. Over the past two winters Art has been abusing his Ghost XT on the northshore’s biggest days, and not once has there been a torn sail body pane - said Artur Szpunar, co-sail designer.

A complete unidirectional Kevlar™ frame and full XPly™ construction, including our custom 6mil window XPly™, guarantees shape stability and durability. And the new Legend style outlines make all aspects of surfing fluid and controllable. The Ghost… it feels like it’s hardly there. The lightness and response are so good the experience will haunt you in the best of ways.

In response to the Ghost XT’s immense popularity and customer demand for smaller sizes, we have also added an amazing new 4.5 to the range, designed and developed for the MauiSails SRS Wave 370 rdm mast.

What is Technora™

Technora™ is a very strong and light para-aramid fiber. Its tensile strength to weight ratio is 3x greater than that of fiberglass, polyester or nylon yarns which are other common fibres used in laminate sail cloth. Technora™ also has excellent fatigue resistance which means that it holds up very well to repeated loading, flexing, abrasion and UV. The Technora™ laminate cloth used in the GHOSTXT provides the ultimate in light weight and stability with good durability.

Available sail sizes » 4.5, 4.7, 5.0, 5.3, 5.7, 6.1, 6.7

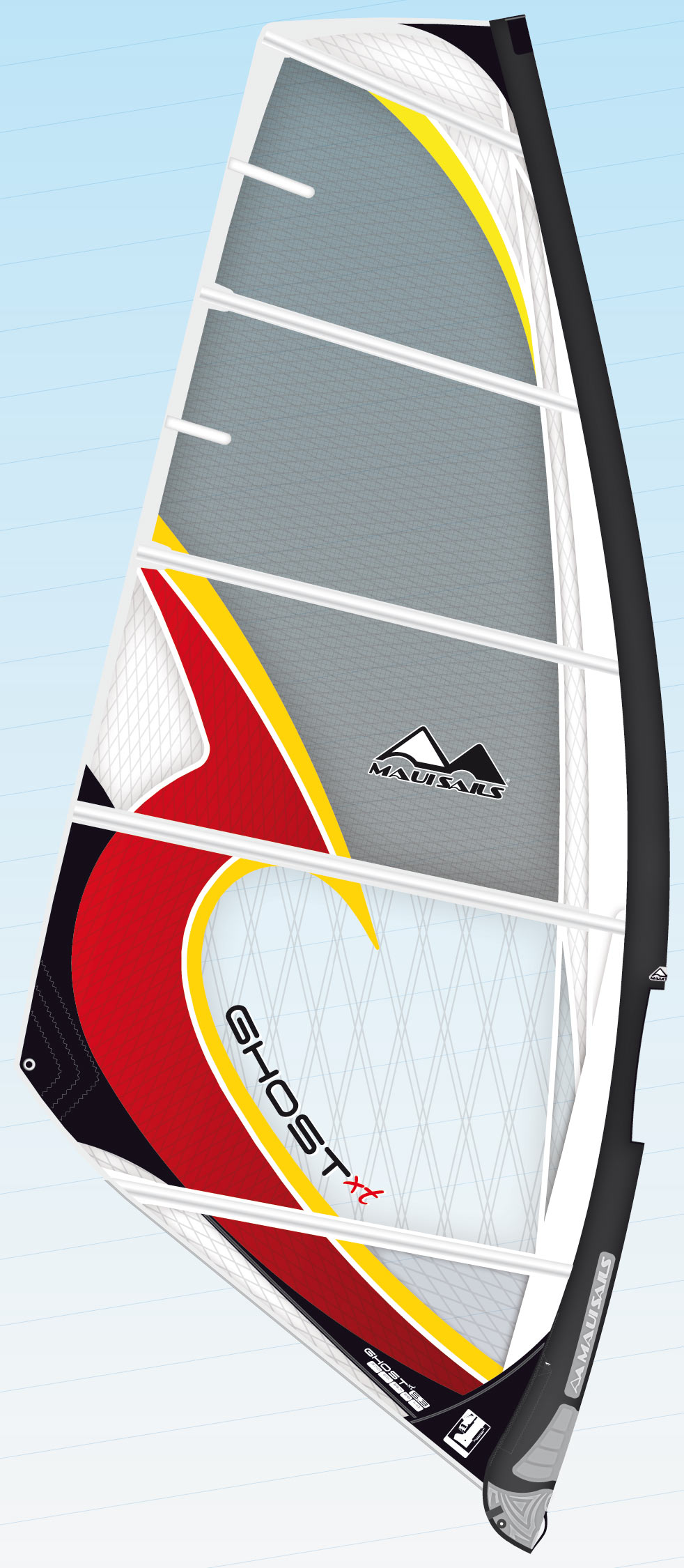

Colorways

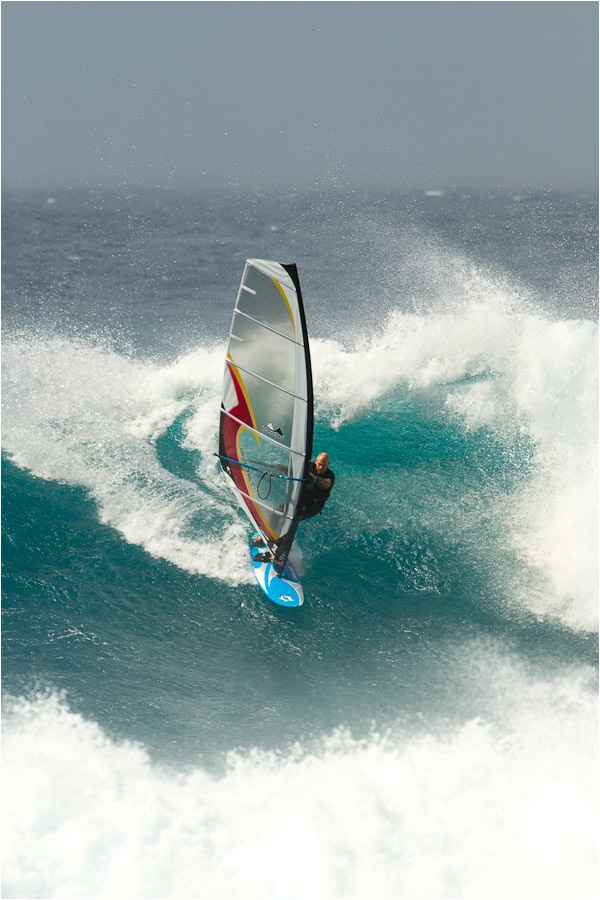

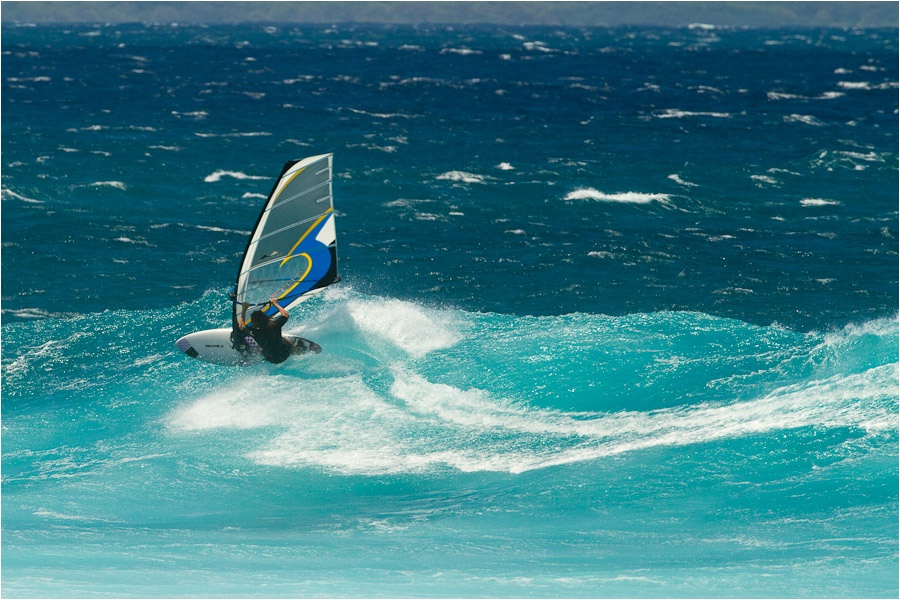

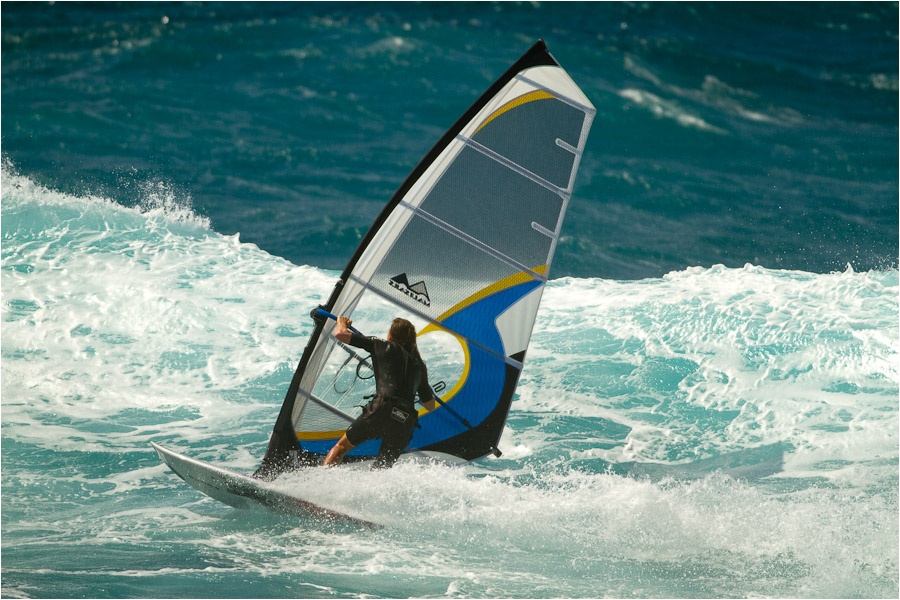

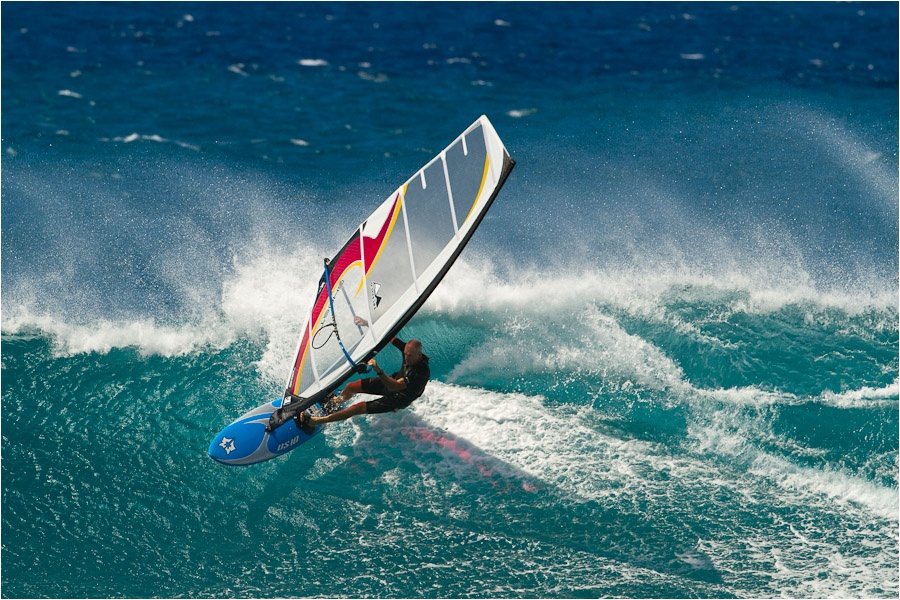

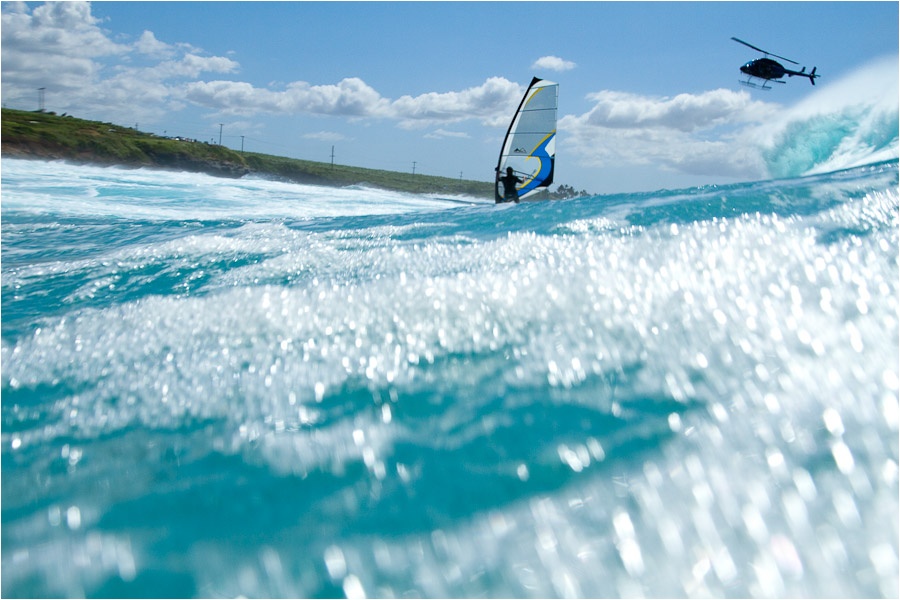

2012 Ghost XT in action

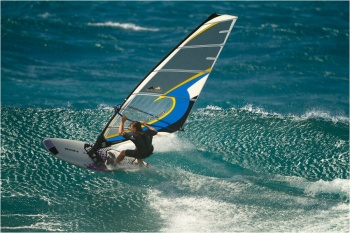

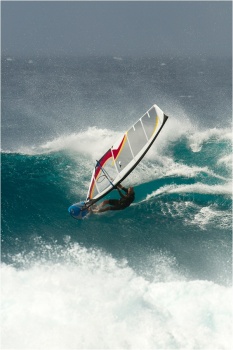

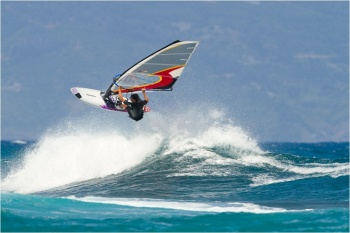

2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT  2012 Ghost XT
